Description

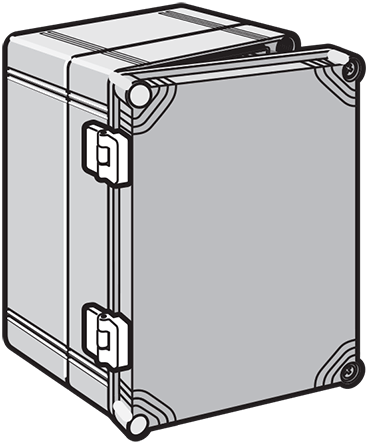

Qline-I Hinge Kit, fits QLine I, 42x52x19mm, Light Gray, Polycarbonate
- Use on all QLine I enclosures
- Hinge Kit meets Type-4 requirements
- Hinge Kit includes two polyamide hinges, eight M4 self-tapping plated screws, eight flat washers and drilling template
- Three hinges required for 600-mm sides
PRODUCT ATTRIBUTES
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Smooth Matte
- Material: Polycarbonate
- Weight: 0.12 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
QLine I Hinge Kit includes two polyamide hinges, eight M4 self-tapping plated screws, eight flat washers and drilling template. Use on all QLine I enclosures. Hinge Kit meets Type 4 requirements. Three hinges required for 600-mm sides.
BULLETIN NUMBER
Q41Y
