Description

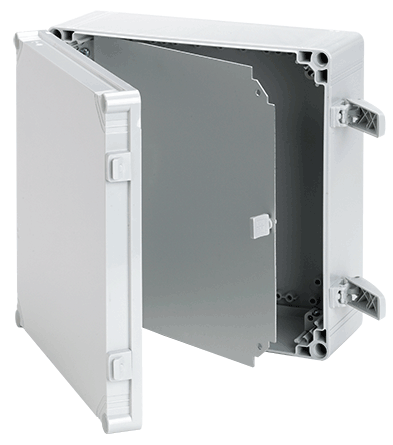

Swing Panel, fits 200x300mm, Aluminum
- For use with QLine I Polycarbonate Enclosures
- Adjustable-depth, aluminum hinged-swing panel
PRODUCT ATTRIBUTES
- Material: Aluminum
- Panel Size: 7.32 x 11.02 in / 186 x 280 mm
- Fits Enclosure Size: 11.81 x 7.87 in / 300 x 200 mm
- Hinged Side of Enclosure: 200 mm
- Color: Unpainted
- Finish: Anodized
- Thickness: 16 ga / 1.52 mm
- Weight: 0.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Adjustable-depth aluminum swing panels for use in QLine I polycarbonate enclosures, provide a convenient way to install controls and instruments near enclosure body opening while providing access and security. Suitable applications include water, pulp and paper, petroleum and chemical processing, food, packaging and pharmaceutical applications.
BULLETIN NUMBER
Q41Y
