Description

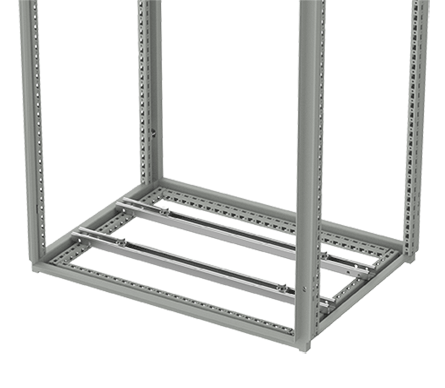

Transformer Rails, fits 1200mm wide, Steel
- Commonly installed side-to-side in the frame
- Includes four M10 clamping nuts and bolts to attach equipment to rails
- Rails slotted to fit the integral mounting holes in the frame
- All mounting hardware included
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Length: 1134 mm / 44.65 in
- Color: Unpainted
- Finish: Plated
- Thickness: 12 ga / 2.66 mm
- Weight: 13.02 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Catalog
Data Sheet
Installation Manual / Instruction Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Transformer Rails are used to mount heavy components and transformers in the bottom of an enclosure.
BULLETIN NUMBER
P20
