Description

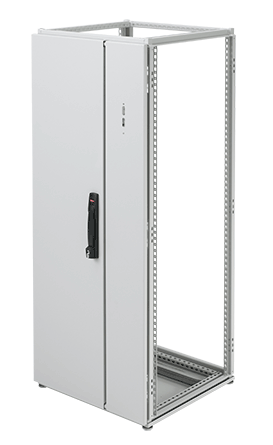

Disconnect Door for ProLine Enclosures, fits 2000x1000mm, Right Large
- Includes a flush handle with defeater and 3-point latching system
- Enclosures with a preferred cutout will accept the disconnect switches listed in the Preferred Cutout Overview section.
- ProLine enclosures with disconnect doors that have a large cutout provision will accept the following types of flange-mounted disconnect disconnect devices:
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Dimensions: 2000 x 1000 mm / 76.34 x 39.13 in
- Cutout Provision: Large right-hand
- Fits Frame: 2000 x 1000 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 190 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Disconnect Doors provide a means to mount flange-mount disconnects to ProLine Enclosures. Hinged mullion provides unobstructed access to interior, thus easing equipment installation.
Disconnect mullion is hinged to provide easy disconnect installation and maximum access to subpanel. Removable door bar is included on disconnect door. A flush handle with defeater operates an internal 3-point latch system on disconnect door and latches to the disconnect mullion. Interlocking is provided from Primary door to disconnect mullion. The disconnect mullion and disconnect door include 140-degree hinges and are gasketed to maintain enclosure integrity.
Allen-Bradley: Large handle to be used with 400A or greater disconnect switches and 600A or greater circuit breakers.
Siemens ITE: MAX-FLEX™ FHOHN handle used with MD 800 amp, ND (1200 amp), PD (1600 amp) and RD (2000 amp).
