Description

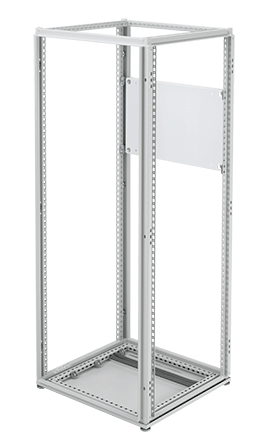

Partial Subpanel, 400x800, fits 700H (min.), White, Steel
- 12 gauge steel; conductive or white painted finish
- All necessary mounting hardware is included
- Partial Subpanels have flanges on four sides for added strength.
- Panels can be positioned vertically in 25-mm increments, but also can be positioned at any depth in 25-mm increments using depth-mounted grid straps for securing (sold separately)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits: All 800-mm-wide HMIs
- Conductive Panel: PPP48G
- Fits Frame: 700 mm or taller mm
- Color: White
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 17.48 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Catalog
Data Sheet
Installation Manual / Instruction Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Partial Subpanels have flanges on four sides. Panels can be positioned vertically in 25-mm increments and also can be positioned at any depth in 25-mm increments using the optional grid straps. All necessary mounting hardware is included.
BULLETIN NUMBER
P20
