Description

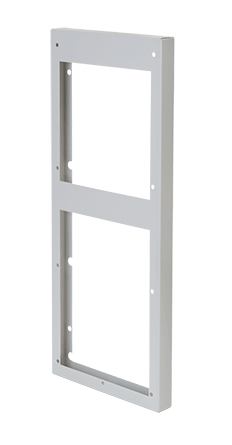

Easy Swap Air Cond Adaptor Plnm Rittal Top Therm to G57 20000BTU, Lt Gray, Steel
- No modification of the enclosure required - designed to match the enclosure cut-out and mounting holes of the air conditioner being replaced
- Plenum design allows for optimum air flow (vs. a flat plate that can block the air intake and air outtake left by the older air conditioner)
- Gasket included
PRODUCT ATTRIBUTES
- Height: 61.13 in / 1553 mm
- Width: 20.88 in / 530 mm
- Depth: 1.5 in / 38 mm
- Material: Mild Steel
- Protection Rating: NEMA Type 12
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 18 ga / 1.21 mm
- Air Conditioner Manufacturer to Replace: Rittal
- Weight: 20.54 lb
DRAWINGS AND DOCUMENT DOWNLOADS
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
When existing air conditioners are damaged or have reached end-of-life, Easy Swap Adaptor Plenums provide a quick and easy means for attaching a new nVent HOFFMAN air conditioners to the cutout left on the enclosure.
To quickly identify the correct air conditioner and plenum download the spec sheet from the Downloads tab or download the Easy Swap app from Apple App or Google play stores
Please contact Customer Service for support in finding an appropriate cross for older HOFFMAN/Mclean models not shown above.
Prior to ordering, ensure Adaptor Plenum dimensions do not exceed available space on the enclosure mounting surface.
ISC is a registered trademark of ISC Sales, Inc.
Kooltronic is a registered trademark of Kooltronic, Inc.
Pfannenberg is a registered trademark of Pfannenberg Incorporated
Rittal is a registered trademark of Rittal Corporation
Adaptor Plenums for Rittal are not suitable for replacing partial-recessed or fully-recessed mounted air conditioners.
Thermal Edge is a registered trademark of Thermal Edge, Inc.
