Description

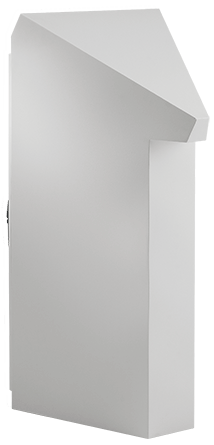

PROLINE Gold Series Wedge Console, 1198x517x597, Lt Gray, Steel
- Optional Wedge Consoles can be positioned between desk consoles
- Top has a 25-degree slope
- Hinged rear access door is standard
PRODUCT ATTRIBUTES
- Height: 47.13 in / 1198 mm
- Width: 20.35 in / 517 mm
- Depth: 23.5 in / 597 mm
- Protection Rating: IP66
- Material: Mild Steel
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 96 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Optional Wedge Consoles can be positioned between desk consoles. The wedge console top has a 25-degree slope. Optional levelers or casters can be attached by drilling holes at pre-marked locations in the console bottom. Hinged rear access door is standard.
BULLETIN NUMBER
P11
