Product Overview

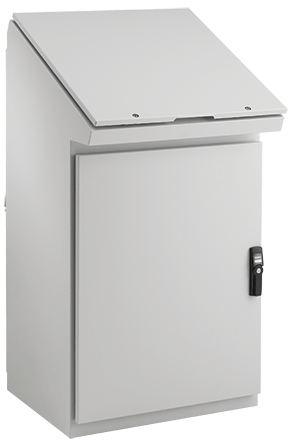

ProLine Gold Series 1-Bay Desk Console Type 12, 1175x641x500, Lt Gray, Steel

25-degree sloped top
Seams continuously welded and ground smooth
Top door prop allows for single-handed operation
Built-in top door handle
Quarter-turn latches hold top door securely closed
ProLine latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures
Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
Full access provides maximum mounting space and easy access to interior components

PRODUCT ATTRIBUTES

Height: 46.27 in / 1175 mm
Width: 25.23 in / 641 mm
Depth: 18.47 in / 469 mm
Protection Rating: NEMA Type 12; IP66
Material: Mild Steel
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Weight: 137 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

The ProLine Gold Series Desk Console provides an ideal surface for mounting HMI controls such as keyboards, switches, lights or dials, and it is ergonomically designed so operators can sit or stand while working. The console also provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory.

BULLETIN NUMBER

P11
