Description

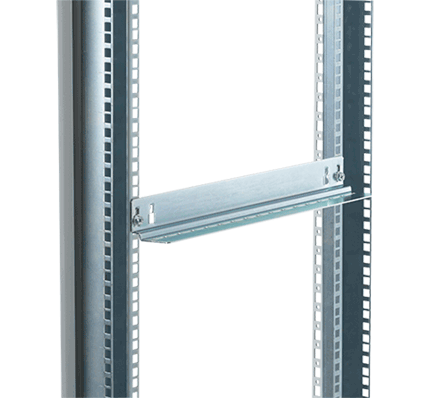

Rack-Mount Support Guides, 417mm, Plated, Steel
- Guides mount between two pairs of rack angles, with slotted holes provided for vertical or lateral adjustment
- Furnished in pairs, with mounting hardware supplied
- Can be installed on 19-in. or 24-in. rack angles
- Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps
- Order these items separately.
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Frame Depth: 600 mm / 23.62 in
- Color: Unpainted
- Finish: Plated
- Thickness: 14 ga / 1.9 mm
- Weight: 3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Equipment Guides help support rack-mounted equipment during installation. Guides mount between two pairs of rack angles. Slotted holes are provided for vertical or lateral adjustment. Furnished in pairs. Mounting hardware included. Can be installed on 19-in. or 24-in. rack angles. Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately.
BULLETIN NUMBER
P20
