Product Overview

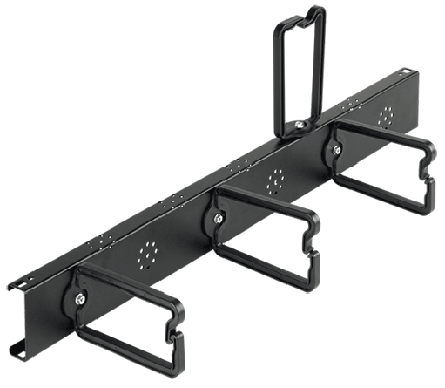

ProLine Front-to-Back D-Ring Bracket, fits 1200mm deep, Black, Steel
- The Front-to-Back D-Ring Bracket manages cable routed between the front and back of a cabinet
- It can be used with optional Universal D-Ring Brackets or Transition Brackets for increased flexibility in managing cables
- The bracket mounts to any ProLine frame
- It secures cable with D-Rings that snap open and closed for secure routing with easy access for wiring changes
- The D-Rings can be oriented for vertical, front-to-back or side-to-side cable management
- Kit includes D-Rings and mounting hardware
PRODUCT ATTRIBUTES
- Material: Mild Steel
- D-Ring Quantity: 5
- Fits Enclosure Depth: 1200 mm / 47.24 in
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 6.04 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Front-to-Back D-Ring Bracket manages cable routed between the front and back of a cabinet. It can be used with optional Universal D-Ring Brackets or Transition Brackets for increased flexibility in managing cables. The bracket mounts to any ProLine frame. It secures cable with D-Rings that snap open and closed for secure routing with easy access for wiring changes. The D-Rings can be oriented for vertical, front-to-back or side-to-side cable management. Please note this kit includes D-Rings and mounting hardware.
