Hoffman PBSK66 Proline Sloped-Front Base with Cutout

$480.00

SKU:: PBSK66
Shipping:: Calculated at Checkout

Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932

Nationwide Shipping Serving all 50 states

Technical Support Product selection assistance

Project Assistance Quotes and sourcing support

Description

Base with Cutout for ProLine Sloped Front HMI, fits 600x600mm, Lt Gray, Steel

Mounting hardware is provided

PRODUCT ATTRIBUTES

Height: 23.62 in / 600 mm
Width: 23.62 in / 600 mm
Material: Mild Steel
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 12 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

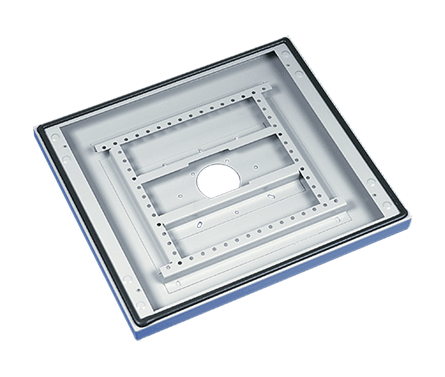

Base closes off open bottom of ProLine Sloped-Front HMI Enclosures. It has a stiffener framework attached to the inside and mounting holes that provide a rigid mounting means for 8.00 x 8.00-in. pedestal, pedestal extension, swivel tilt or angle adapter. It also has mounting holes pattern of 80x80 mm which fits Flange Coupling of Compact Series 4 System 80. Base has foam-in-place gasket.
