Product Overview
Base for ProLine Sloped Front HMI 0-mm, fits 1200x600mm, Lt Gray, Steel
- Mounting hardware is provided
PRODUCT ATTRIBUTES
- Height: 47.24 in / 1200 mm
- Width: 23.62 in / 600 mm
- Material: Mild Steel
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 36 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS

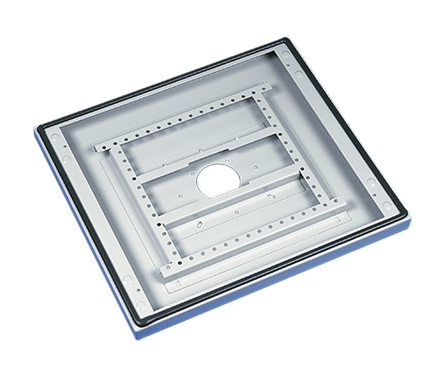

Base closes off open bottom of ProLine Sloped-Front HMI Enclosures that are table-top mounted or suspended from overhead. Base includes a ground stud. Foam-in-place gasket assures a water-tight and dust-tight seal. A top support bracket can be installed inside a 600-mm wide base for reinforcement when a Compact Series 4 System 80 is attached from below.
BULLETIN NUMBER
P9
Other Information
