Product Overview

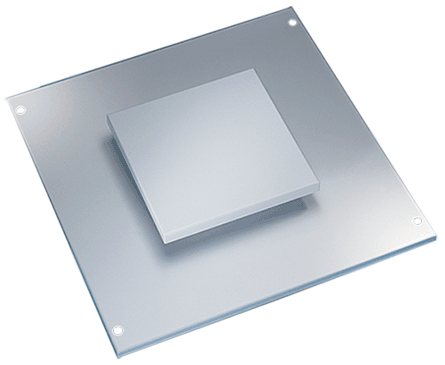

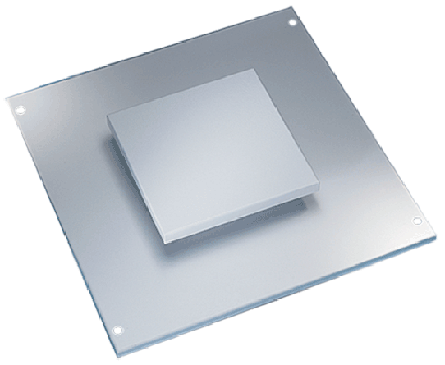

ProLine G2 Pagoda Tops, fits 1600x400mm, Painted

Maintains NEMA 12 Type rating on enclosure when installed
Drip-protected, raised pagoda vent
Integral axial exhaust fan for active cooling
Pagoda Tops 1200 mm and greater in width have one drip protected, raised pagoda vent opening positioned over one side that can be oriented for right or left ventilation
Seamless polyurethane gasket between top and frame (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Includes four M12 hex bolts for installation
Lifting eyes (not included) can be used instead of bolts

PRODUCT ATTRIBUTES

Fits Frame: 1600x400 mm
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Material: Mild Steel
Thickness: 14 ga / 1.9 mm
Weight: 38 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Pagoda tops can be used on the top of a modular enclosure for active cooling. The design features a drip-proof raised pagoda vent with a 115-volt integral axial exhaust fan, and includes gasket seals to maintain a NEMA 12 enclosure rating.

BULLETIN NUMBER

P40

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
