Description

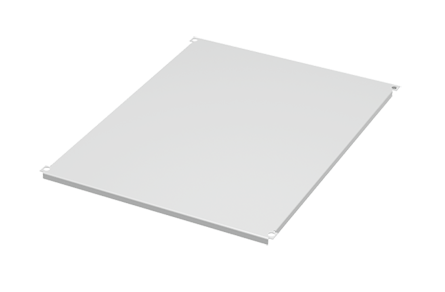

ProLine G2 Solid Top, fits 600x600mm, Conductive, Steel
- Lifting eyes can be used to attach the solid top, in place of the included hardware
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Additional support provisions need to be made to support top mount air conditioners or other top mount accessories
- Includes four M12 hex bolts for installation
- Solid Tops are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Specialty: EMC Components
- Fits Frame: 600x600 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Material: Mild Steel
- Thickness: 16 ga / 1.52 mm
- Weight: 12.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Solid tops are used to close the top opening on an enclosure frame.
BULLETIN NUMBER
P40
