Description

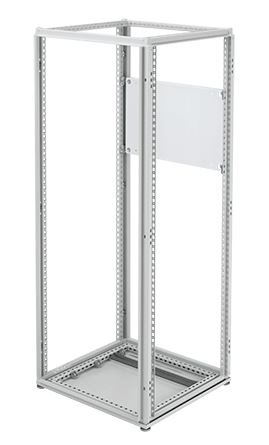

ProLine G2 Partial Subpanel, 1100x600, Conductive
- 12 gauge (2.5mm) mild steel; available standard in painted white or conductive finish
- Flanges on all four sides for increased rigidity
- Partial subpanels can be placed in the rearmost position of the enclosure at any vertical height in 25-mm increments, or placed at any depth using grid straps (not included)
- Side-mount partial subpanels can be placed on either side at any vertical height in 25-mm increments
- All necessary mounting hardware is included
PRODUCT ATTRIBUTES
- Fits Frame: 1100x600 mm
- Color: Unpainted
- Finish: Galvanized
- Material: Mild Steel
- Thickness: 12 ga / 2.66 mm
- Weight: 36 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The ProLine G2 Partial Subpanel secures to the frame or grid straps and facilitates component mounting without consumption of excess internal space; also available in side-mount configuration.
BULLETIN NUMBER
P40
