Product Overview

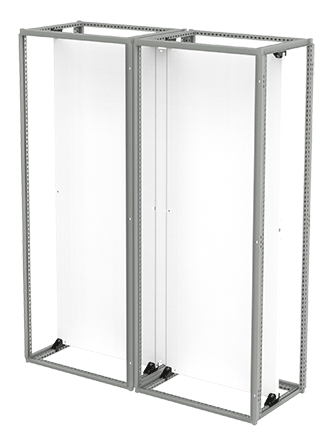

ProLine G2 Joining Subpanel, fits 1400xN/Amm, Steel
- Provides a continuous panel surface in multiple bay enclosures
- Can be inserted between full mounting subpanels of equal height
- Painted or galvanized options
- Can be installed from front or rear
- Subpanels can be mounted at any depth in 25-mm increments (front to back)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Powder Coated
- Color: White
- Thickness: 10 ga / 3.4 mm
- Fits Frame Height: 1400 mm
- Weight: 8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The ProLine G2 Joining Subpanel provides a continuous panel surface in multiple-bay enclosures. The joining subpanel is inserted between full subpanels of equal height. It can be installed from front or rear.
BULLETIN NUMBER
P40
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
