Description

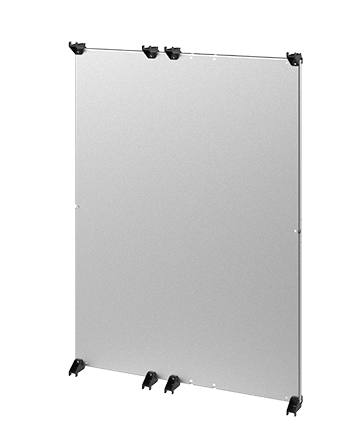

ProLine G2 Disconnect Mounting Subpanel, 2000x1600, Conductive
- Disconnect specific mounting subpanels are required for frames greater than 1000mm in width; any width 1000mm or less uses a standard mounting subpanel
- 10 gauge (3.0 mm) mild steel; conductive plated option only
- Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
- Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
- Disconnect mounting subpanel comes standard with Disconnect Package
PRODUCT ATTRIBUTES
- Fits Frame: 2000 x 1600 mm
- Color: Unpainted
- Finish: Galvanized
- Material: Mild Steel
- Thickness: 10 ga / 3.4 mm
- Weight: 197 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Frame HxW dimensions are nominal mm.
