Description

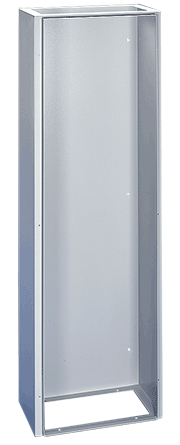

ProLine G2 Cable Entry Cabinets, fits 600x600mm, Light Gray, Steel
- 14 gauge (1.75mm) mild steel
- RAL 7035 textured light-gray polyester powder paint finish
- Foam-in-place gasket and optional accessories to maintain environmental integrity
- Open top and bottom of cabinet; closure plates sold separately
- Front opening of cabinet can be closed with either solid door or cover
PRODUCT ATTRIBUTES
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 14 ga / 1.9 mm
- Weight: 175 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Cable Entry Cabinet is a narrow, full-height cabinet attached to the side of a modular enclosure frame for cable management. The full-height side opening can be covered with a solid door or side cover. Closure plates are available to seal the top and bottom of the cable entry cabinet.
BULLETIN NUMBER
P40
