Description
APPLICATION:

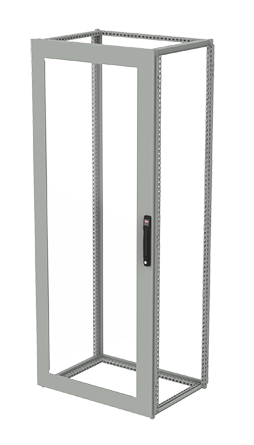

Proline G2 Window Doors can be used to enable viewing of electronic equipment. Featuring clean contemporary lines, they are available in clear safety glass or polycarbonate and include a standard door bar system for easy accessory attachment. The Smooth Glide latching system is made from high-quality components and features an innovative timed latch action which ensures a solid door seal with a low closure force.
FEATURES:
- Safety glass or polycarbonate (for food and beverage applications)
- Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
- Clean contemporary design
SPECIFICATIONS:
- Single Window doors available for frames up to 1000 mm wide
- 0.25 in. (6.35 mm) thick window to provide maximum protection and viewing area
- Standard door bar system on all window doors for easy accessories attachment
- Low-profile Swing Handle with key lock; other options available
- Seamless polyurethane gasket (UL component recognized) provides a watertight, dust-tight seal against moisture and contaminants
- Timed latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin rollers to prevent metal-on-metal grinding
- 3-point latch system for doors 1000mm or greater in height
- Doors can be hinged on left or right (default left)
- 14-degree hinging standard (180-degree hinge option available)
- Door can be reversed without removing the side covers
- Can be used on front or rear of the Proline G2 frame; can be used on the sides with side door adapter (not included)
- Two grounding studs
- All mounting hardware included
FINISH:
- Clear safety glass or smoke-grey tinted polycarbonate
- Polyester powder paint; RAL 7035 textured light gray standard
- Custom colors available
ACCESSORIES:
- Proline Grounding Kit
- Door Stop Kit
- 180-Degree Hinge Kit
- Side Door Adapter
- Flush Swing Handles
- L Handle
- Flush Bezels
- Small Flush Swing Handle Door Support Roller Kit
