Description

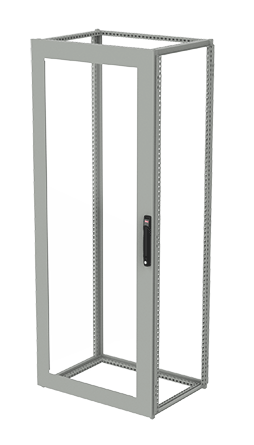

ProLine G2 Window Doors, fits 1800x600mm, Aluminum, Polycarbonate

Safety glass or polycarbonate (for food and beverage applications)
Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
Clean, contemporary design
Window doors available for frames up to 1000 mm wide
0.25 in. (6.35 mm) thick window to provide maximum protection and viewing area
Standard door bar system on all window doors for easy accessories attachment
Low-profile Swing Handle with key lock; other options available
Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Timed latch engagement to ensure top and bottom of door catch reliably
Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
3-point latch system for doors ≥ 1000mm in height
Doors can be hinged on left or right (default left)
14-degree hinging standard (180-degree hinge option available)
Door can be reversed without removing the side covers
Can be used on front or rear of the ProLine G2 frame; can be used on the sides with side door adapter (not included)
Two grounding studs
All mounting hardware included
