Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
Low-profile Swing Handle with key lock; other options available
Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Single doors available for frames up to 1000 mm wide

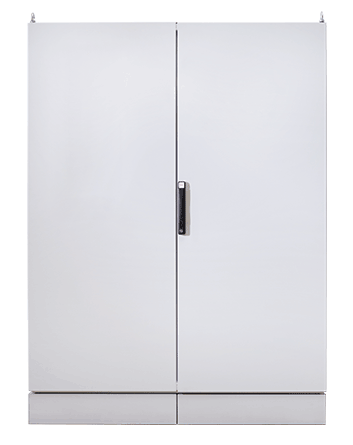

Overlapping double doors available for frames 800 mm wide and greater
Door bar system on all doors
Timed latch engagement to ensure top and bottom of door catch reliably
Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
3-point latch system for doors ≥ 1000 mm in height
Key lock handle standard; other options available
Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
Solid Doors are finished with paint over plated surfaces
140-degree hinging standard (180-degree hinge option available)
Door can be reversed without removing the side covers
Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
Two grounding studs
All mounting hardware included
Sold individually
Overlapping Double Doors – Additional Specifications: Primary door with Smooth Glide latching system; Secondary door has two latch points with a center lever to ensure secure door closure
ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with a low closure force. Sold individually.
