Description
APPLICATION:

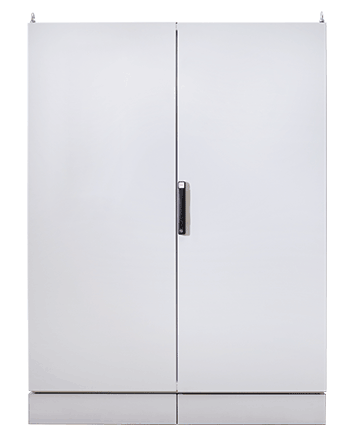

Proline G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action, ensuring a solid door seal with a low closure force. Sold individually. FEATURES • Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime • Low-profile Swing Handle with key lock; other options available • Seamless polyurethane gasket (UL Component Recognized) provides a watertight, dust-tight seal against moisture and contaminants
SPECIFICATIONS:
- Single doors available for frames up to 1000 mm wide
- Overlapping double doors available for frames 800 mm wide and greater
- Door bar system on all doors
- Timed latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin rollers to prevent metal-on-metal grinding
- 3-point latch system for doors 1000 mm or greater in height
- Key lock handle standard; other options available
- Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
- 14 gauge (1.75 mm) mild steel
- 140-degree hinging standard (180-degree hinge option available)
- Door can be reversed without removing the side covers
- Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
- Two grounding studs
- All mounting hardware included
- Sold individually Overlapping Double Doors – Additional Specifications
- Primary door with Smooth Glide latching system
- Secondary door has two latch points with a center lever to ensure secure door closure
FINISH:
- Polyester powder paint; RAL 7035 textured light gray standard
- Custom colors available
LOAD RATING:
- 250/113kg, safety factor 1.5; frame size: 2000x600x800 mm (load ratings vary by frame size)
ACCESSORIES:
- Proline Grounding Kit
- Door Stop Kit
- 180-Degree Hinge Kit
- Side Door Adapter
- Flush Swing Handles
- L Handle
- Flush Bezels
- Small Flush Swing Handle
- Steel Data Pocket
- Thermoplastic Data Pocket
- Door Bar Grid Straps
- Door Support Roller Kit
