Product Overview

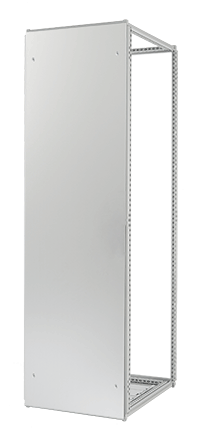

ProLine G2 Solid Cover (Front or Rear), fits 2000x500mm, Painted
- Hinge hanger on top for easy alignment
- Formed steel hems on the sides of the covers for enhanced structural support and to protect user from sharp edges
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Attach to enclosure frame with low-profile, flat head screws
- Door can be reversed without removing the side covers
- Used on the sides of the ProLine G2 frame
- Not suitable as a barrier between enclosures (instead use the ProLine G2 barrier panel)
- Two grounding studs
- All mounting hardware included
- Solid Covers are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Height: 78.1 in / 1983 mm
- Width: 19.6 in / 498 mm
- Depth: 0.79 in / 20 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 16 ga / 1.52 mm
- Fits Frame: 2000 x 500 mm
- Weight: 35 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Solid Sides enclose the open sides of the modular enclosure frame and have innovative design elements incorporated to ensure fast installation and enhanced structural support.
BULLETIN NUMBER
P40
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
