Description

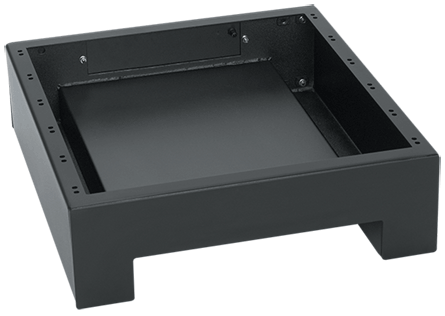

ProLine G2 Transportation Base, fits 1600x600mm, Black, Steel
- Removable side cover plates allows wire access between bases
- Can be used across bayed enclosures up to a maximum of 300mm (118.11in.) total width
- Maintains NEMA 12 rating without requiring gland plate
- Gasket and installation hardware included
- Unique design allows forklift access from each end
- Can be configured in a variety of combinations
PRODUCT ATTRIBUTES
- Fits Frame: 1600x600 mm
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 10 ga / 3.4 mm
- Weight: 93 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Transportation Bases provide enhanced stability and forklift provisions for modular enclosures up to a maximum of 3000 mm (118.11) total width in a multiple-bay system.
BULLETIN NUMBER
P40
