Description
APPLICATION:

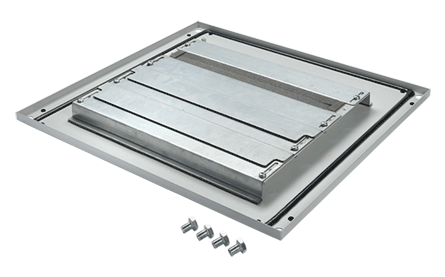

Gland plates are used with a plinth base to provide cable management solutions while maintaining a NEMA 12 rating. Proline G2’s unique Duro-Stand Gland Plate was designed to bear the weight of a person, making it easier to work on the enclosure when the gland plate is installed.
FEATURES:
- Consists of a base mounting surface and adjustable foamgasketed gland plates that permit cable entry
- Sturdy, adjustable gland plates designed to bear the weight of a person
- Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
SPECIFICATIONS:
- Galvanized or painted versions
- Sealed to maintain NEMA Category 12 rating
- 14-gauge (1.75 mm) mild steel or galvanized
- Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
- Can be used without a base if casters, levelers or frame feet are installed
- Can be rotated 180 degrees for front or rear cable entry
- Installation hardware included
- Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
FINISH:
- For painted versions: Polyester powder paint; RAL 7035 textured light grey standard
- Custom colors available
ACCESSORIES:
- Plinth Base
- Fully-Sealed Plinth Base
- Caster Kit
- Levelers
- Frame Feet
