Description

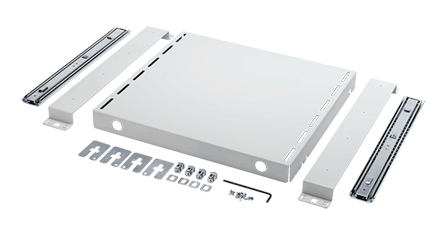

ProLine G2 Frame Pull-Out Shelf, fits 800W, Light Gray, Steel
- Mounts to the front and rear frame uprights
- The shelf is 16 gauge (1.5 mm) steel, while the mounting supports are 12 gauge (2.5mm) steel
- White, polyester powder paint finish
PRODUCT ATTRIBUTES
- Width: 757 mm / 29.8 mm
- Depth: 505 mm / 19.9 in
- Fits Frame Width: 800 mm
- Pull Out: 450 mm / 17.7 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 16 ga / 1.52 mm
- Weight: 18 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The ProLine G2 Frame Pull-Out Shelf mounts to the vertical hole pattern of the frame, with an integrated slide for easy access to shelf-mounted devices.
BULLETIN NUMBER
P40
