Description

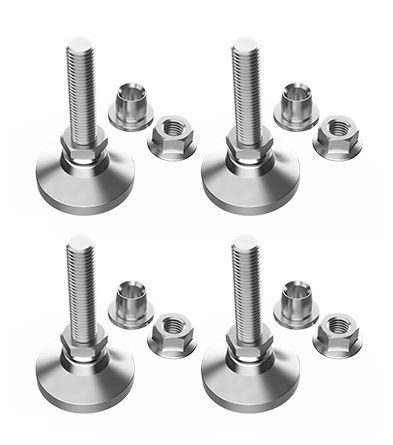

ProLine G2 Post Type Leveler Kits
- The Mobile Base Leveling Kit allows for height adjustments at the corners of the Mobile Base to account for uneven floors
- Levelers are plated for indoor use, and are rated to 3000 lbs. (1361 kg)
PRODUCT ATTRIBUTES
- Color: Unpainted
- Finish: Plated
- Material: Mild Steel
- Weight: 2.14 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
The Post-type Leveler Kit allows for height adjustment at the enclosure corners to account for uneven floors. Levelers thread into the frame corners, and can be used with a bottom-mounted Gland Plate or a 0-mm Solid Base; they may also be affixed to the corner blocks of the standard Plinth Base. Levelers are plated for indoor use, and are rated to 3000 lbs. (1361 kg).
Note: the non-locking casters of the Mobile Base have a load bearing capacity of 1000 lbs. (453.6 kg): exercise caution if disengaging the levelers.
BULLETIN NUMBER
P40
