Description

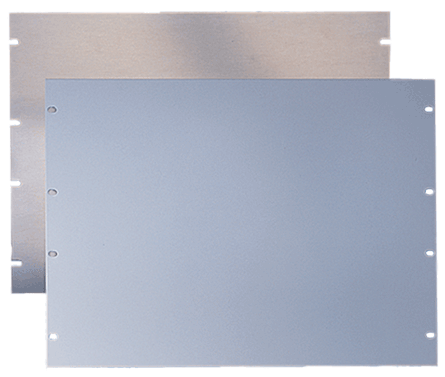

ProLine Rack Panel EIA Spacing 8U, 355x610x2.5mm, Brushed, Aluminum
- Available in aluminum or painted steel; steel is RAL 7035 textured light-gray polyester powder paint
- Aluminum panels are 0.125-in. thick 5052-H32 alloy; steel panels are 12 gauge
- All panels are flat with oblong holes positioned at EIA standard spacing (rack units)
- Mounting hardware sold separately; recommend use of ECNSM6
PRODUCT ATTRIBUTES
- Material: Aluminum
- Rack Angle Size: 24 in.
- Rack Units: 8
- Color: Unpainted
- Finish: Brushed
- Thickness: 0.125 ga / 3 mm
- Weight: 5.12 lb
DRAWINGS AND DOCUMENT DOWNLOADS
Approval Agency Certificate
Data Sheet
Sell Sheet
ADDITIONAL PRODUCT DETAILS
Rack Panels mount to rack angles and can be used for mounting components or as a blanking plate. All panels are flat with oblong holes positioned at EIA standard spacing. Mounting hardware is sold separately. The recommended fastener package kit is ECNSM6.
BULLETIN NUMBER
P20
