Description

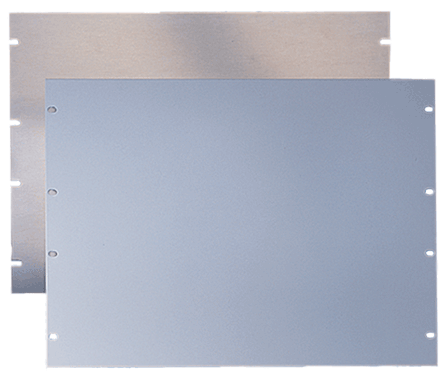

Rack Panels, 4Ux19.00, Lt Gray, Steel
- Available in aluminum or painted steel; steel is RAL 7035 textured light-gray polyester powder paint
- Aluminum panels are 0.125-in. thick 5052-H32 alloy; steel panels are 12 gauge
- All panels are flat with oblong holes positioned at EIA standard spacing (rack units)
- Mounting hardware sold separately; recommend use of ECNSM6
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Rack Angle Size: 19 in.
- Rack Units: 4
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 4.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Sell Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Rack Panels mount to rack angles and can be used for mounting components or as a blanking plate. All panels are flat with oblong holes positioned at EIA standard spacing. Mounting hardware is sold separately. The recommended fastener package kit is ECNSM6.
BULLETIN NUMBER
P20
