Description

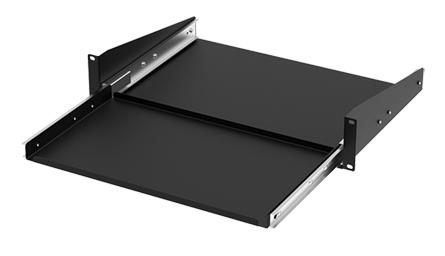

Pull-Out Shelf for Mini Keyboard, 2U, Black, Steel
- The Pull-Out Shelf for Mini Keyboard mounts either in a cabinet or on a 19-in. open-frame rack and fits a 16.25-in. (413-mm) wide keyboard
- When closed, all parts slide between the rack angles
- Please not the keyboard tray slides out 8.94 in. (227 mm)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Powder Coated
- Color: Jet Black
- Rack Units: 2
- Dimensions: 3.50 x 18.31 x 12.42 in / 89 x 465 x 315 mm
- Fits Rack: 19 in.
- Color Code: RAL 9005
- Thickness: 16 ga / 1.52 mm
- Weight: 11 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Pull-Out Shelf for Mini Keyboard mounts either in a cabinet or on a 19-in. open-frame rack and fits a 16.25-in. (413-mm) wide keyboard. When closed, all parts slide between the rack angles. Please not the keyboard tray slides out 8.94 in. (227 mm).
BULLETIN NUMBER
DACCY
