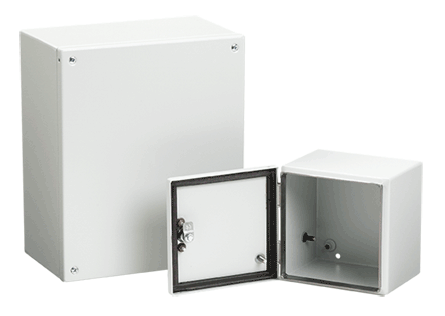

InLine EMC Enclosure Hinge Cover Type 1, 200x150x120mm, Light Gray, Mild Steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE EMC Hinged-Door Enclosures:
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
- Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
PRODUCT ATTRIBUTES
- Height: 7.87 in / 200 mm
- Finish: Powder Coated
- Width: 5.91 in / 150 mm
- Color: Light Gray
- Depth: 4.72 in / 120 mm
- Protection Rating: NEMA Type 1; IP54
- Material: Mild Steel
- Steel Panel: LP2015
- Conductive Steel Panel: LP2015G
- Panel Size: 7.13 x 5.16 in / 181 x 131 mm
- Mounting: 7.17 x 3.35 in / 182 x 85 mm
- Color Code: RAL 7035
- Thickness: 16 ga / 1.5 mm
- Weight: 4.7 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
InLine EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance and EMC protection.
Purchase panels separately.
BULLETIN NUMBER
A53
