Description
APPLICATION:

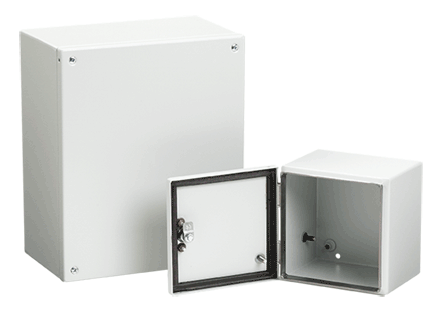

INLINE EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance.
SPECIFICATIONS:
- 16 gauge (1.4-mm) steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HPrated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
INLINE EMC Hinged-Door Enclosures
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
FINISH:
- Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
ACCESSORIES:
- Panels
- Mounting Bracket Kit
- Lock Inserts
- Wing Knob Latch
- Grounding Kit
- DIN Rail or Panel-Mounting Brackets
- DIN3 Category Rails
