Description
APPLICATION:

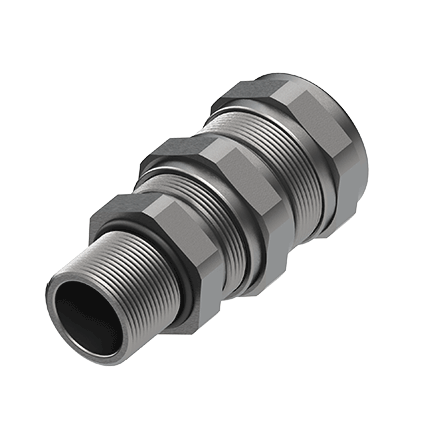

Hazloc cable glands provide strain relief, sealing and secure entry of cables into enclosures or electrical equipment in hazardous areas. Suitable for Zone 1, 2, 21 or 22 with ATEX and IEC certifications, these cable glands are reliable to protect critical processes and people where explosive gas and dust may be present. Available in various materials, thread Categorys and sizes, our hazloc cable glands are designed to be used in many applications and under extreme environments.
FEATURES:
- Suitable for SWA (steel wire armored), AWA (aluminum wire armored), SWB (steel wire braid), STA (steel tape armored), and shielded cable in flameproof (ex d), increased safety (ex e) and dust (ex tb) applications
- Allow for double sealing of cable and jacket with upper and lower seals
- The swivel retainer and grounding cone are adhered to the gland body by the o-rings to prevent any loose parts; remove by simply pull these components slightly to detach
- All metric thread cable glands are packaged as kits; each kit includes a chloroprene washer, a locknut and an earthtag
- All NPT thread cable glands are packaged as kits; each kit includes a locknut and an earthtag (except for NPT 3/8-in. cable glands which do not include locknuts or earthtags)
SPECIFICATIONS:
- Available in nickel-plated brass material with chloroprene seal and 316L stainless steel material with silicone seal
- Available in Metric (M) and NPT (N) thread Category
- Operating temperature from -40 C (-40 F) to 100 C (212 F) with chloroprene seal and -60 C (-76 F) to 130 C (266 F) with silicon seal
