Description

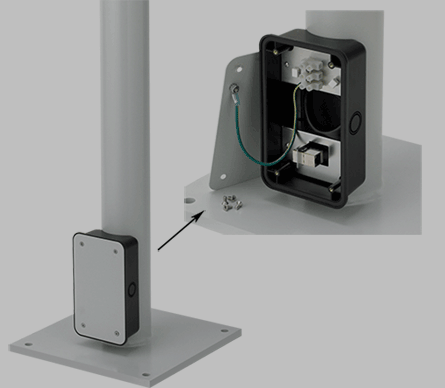

Syspend Vertical Motion Floorpost with Junction Box, 12x12x74, Lt Gray, Steel
- Heavy-wall 3.5-in. structural tube welded to a 12 x 12 x 3/8-in.-thick baseplate
- Provides a "rough-in" point and pull box for power and network field wiring
- Includes internal CAT5 coupler and finger-safe power terminals
- Two conduit knock-outs can be opened to either 1/2 in. or 3/4 in.
- Fully gasketed 16 gauge cover panel on junction box can be used for additional conduit attachment
- Tough, molded ABS junction box is contoured to fit the post and is fluted into the post to protect cables
PRODUCT ATTRIBUTES
- Height: 74 in / 1880 mm
- Width: 11.9 in / 302 mm
- Depth: 11.9 in / 302 mm
- Protection Rating: NEMA Type 12; NEMA Type 4
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed
- Weight: 69 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend Vertical Motion Floorpost with Junction Box provides a method for mounting the Syspend VL and VHD Motion Arms when a structural surface is not available. It allows for a HMI enclosure attached to the Syspend VL and VHD Motion Arms to be post-mounted.
BULLETIN NUMBER
VM4
