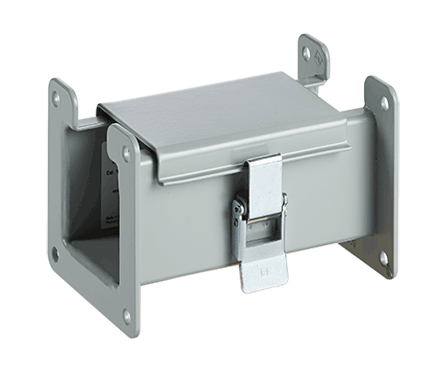

Cutoff Fitting Non-Lay-in, 6.00x6.00, Gray, Steel
- Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm)
- Body comes in two pieces. Shorten body and cover to the desired length and weld together
- Shorten body to desired length and weld on flange
- This is not a "lay-in" fitting but often is used when entering an enclosure
- Fittings are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Type: Cut-Off Fitting
- Height: 6 in / 152 mm
- Width: 6 in / 152 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Sealing Plate Type: 90° Angle
- Sealing Plate Quantity: 1
- Color: Gray
- Color Code: ANSI 61
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm). Body comes in two pieces. Shorten body and cover to the desired length and weld together. Shorten body to desired length and weld on flange. This is not a "lay-in" fitting but often is used when entering an enclosure. Fittings are finished with paint over plated surfaces.
Each sealing plate also includes one gasket and one set of screws to join sections.
