Product Overview

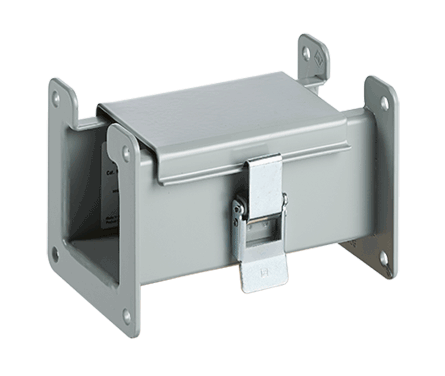

Cutoff Fitting Non-Lay-in, 4.00x4.00, Gray, Steel

Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm)
Body comes in two pieces. Shorten body and cover to the desired length and weld together
Shorten body to desired length and weld on flange
This is not a "lay-in" fitting but often is used when entering an enclosure
Fittings are finished with paint over plated surfaces

PRODUCT ATTRIBUTES

Type: Cut-Off Fitting
Height: 4 in / 102 mm
Width: 4 in / 102 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: 90° Angle
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm). Body comes in two pieces. Shorten body and cover to the desired length and weld together. Shorten body to desired length and weld on flange. This is not a "lay-in" fitting but often is used when entering an enclosure. Fittings are finished with paint over plated surfaces.

Each sealing plate also includes one gasket and one set of screws to join sections.

BULLETIN NUMBER

F10
