Description

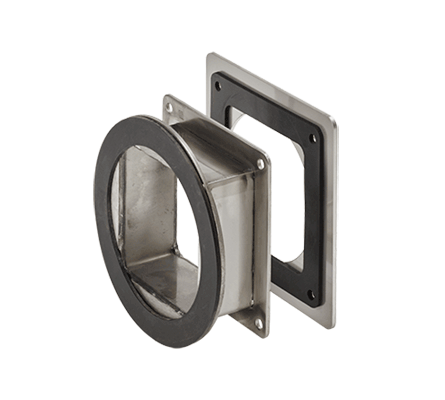

Swivel Nipple Feed-Through Wireway, 2.00x2.00, Brushed, Stainless Steel 304
- Feed-Through Swivel Nipples are used for adjusting wireway to different angles
- Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure
- Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications
PRODUCT ATTRIBUTES
- Type: Nipple
- Height: 2 in / 51 mm
- Width: 2 in / 51 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: No. 2B
- Thickness: 16 ga / 1.59 mm
- Weight: 3.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Feed-Through Swivel Nipples are used for adjusting wireway to different angles. Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure. Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
BULLETIN NUMBER
F22
