Description

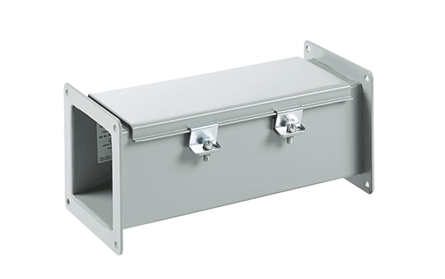

Nipple Feed-Through Wireway, 8.00x8.00x1.00, Gray, Mild Steel
- Feed-Through Nipples are used between adjacent wireway sections or fittings for adjusting wireway length
- Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications
PRODUCT ATTRIBUTES
- Type: Nipple
- Height: 8 in / 203 mm
- Width: 8 in / 203 mm
- Depth: 1 in / 25 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 3.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Case Study
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Feed-Through Nipples are used between adjacent wireway sections or fittings for adjusting wireway length. Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
BULLETIN NUMBER
F20
