Product Overview

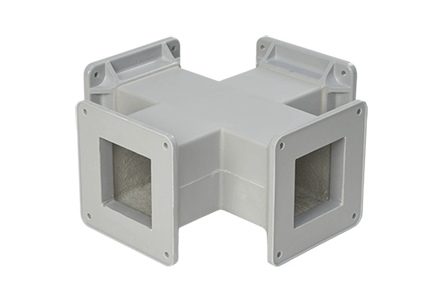

Cross Fitting Feed-Through, 4.00x4.00, Gray, Fiberglass

Feed-Through Fiberglass Crosses are used for routing wires and cables in four directions
Connects to other wireway sections and fittings and protects wires and cables in corrosive or dirty indoor or outdoor applications

PRODUCT ATTRIBUTES

Type: Cross Fitting
Height: 4 in / 102 mm
Width: 4 in / 102 mm
Protection Rating: NEMA Type 12; NEMA Type 3R; IP55
Material: Fiberglass
Color: Gray
Color Code: ANSI 61
Finish: Smooth Matte
Thickness: 0.12 in / 3.2 mm
Weight: 9 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Feed-Through Fiberglass Crosses are used for routing wires and cables in four directions. Connects to other wireway sections and fittings and protects wires and cables in corrosive or dirty indoor or outdoor applications.

BULLETIN NUMBER

F25

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
