Product Overview

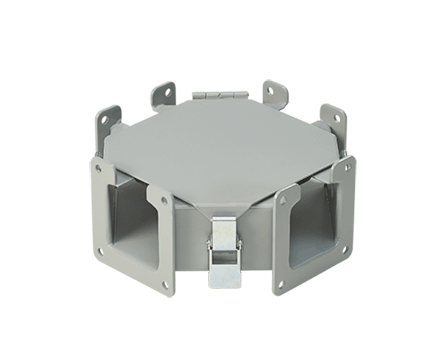

Cross Fitting Lay-in Hinged-Cover, 2.50x2.50, Gray, Steel
- Lay-in Hinged-Cover Cross Fittings are used for routing cables in four directions in wireway runs
- Used when there are four branches, all open along the same side
PRODUCT ATTRIBUTES
- Type: Cross Fitting
- Height: 2.5 in / 64 mm
- Width: 2.5 in / 64 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Sealing Plate Type: Flat
- Sealing Plate Quantity: 3
- Color: Gray
- Color Code: ANSI 61
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 6.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Lay-in Hinged-Cover Cross Fittings are used for routing cables in four directions in wireway runs. Used when there are four branches, all open along the same side.
Each sealing plate also includes one gasket and one set of screws to join sections.
BULLETIN NUMBER
F10
