Description

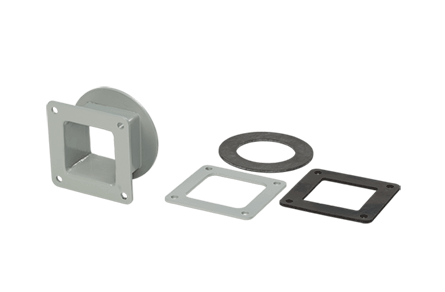

Swivel Nipple Feed-Through, 2.50x2.50, Gray, Steel
- Feed-Through Swivel Nipples are used for adjusting wireway to different angles
- Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure
- Protects wires and cables against dust in a broad range of industrial applications
PRODUCT ATTRIBUTES
- Type: Nipple
- Height: 2.5 in / 64 mm
- Width: 2.5 in / 64 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 2.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Case Study
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Feed-Through Swivel Nipples are used for adjusting wireway to different angles. Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure. Protects wires and cables against dust in a broad range of industrial applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
BULLETIN NUMBER
F20
