Description

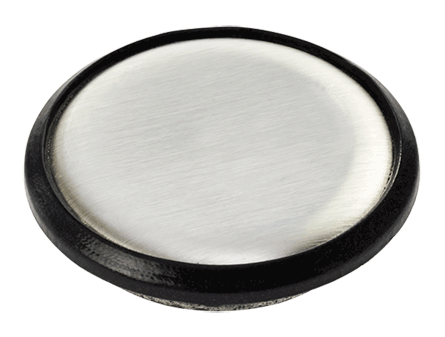

Hazardous Location Hole Seals, 2.6457 x2.6457 x0.6811, SS Type 316
- Secure sealing with silicon rubber gasket to protect against water and dust ingress in extreme temperature applications ranging from -55 C (-67 F) to 180 C (356 F)
- Seal pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water
- Easy installation in enclosure cutouts with self-centering hole seals
- Hole seals are available in metric and english standard hole sizes
PRODUCT ATTRIBUTES
- Fits: 1-1/2-in. Conduit or M50
- Hole Diameter: 1.968 - 2.066 in / 50 mm
- Assembly Diameter: 2.64 in / 67 mm
- Color: Unpainted
- Finish: Brushed
- Material: Stainless Steel 316L
- Weight: 0.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Hazardous Location Hole Seals are designed to be used on Increased Safety (Ex e) enclosures in ATEX or IECEx Zone 1 or 2 hazardous areas. Certified to be used on metallic, non-painted enclosures, these hole seals ensure a dust-, oil- and water-tight seal. Designed to seal extra pushbutton holes, conduit openings and knockout openings, these self-centering hole seals are easy to install.
BULLETIN NUMBER
HLY
