Product Overview
APPLICATION:

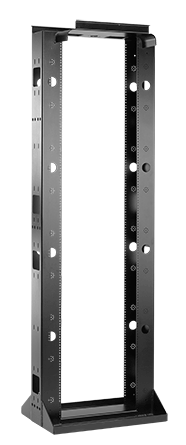

Designed for applications affected by vibrations and seismic activity, Seismic 2-Post Open Frame Racks integrate cable management into a fully welded, heavy gauge steel frame. Used in network, server, and telecommunication room applications that may be subject to seismic activity or vibration. Racks can be ganged with standard 2- or 4-post racks to expand existing systems.
FEATURES:
- Nominal height is 7 ft. (2.13 m) (45U)
- Fits 19-in. rack-mount equipment
- Side rails are tapped on both sides with 12-24 UNC threads for quick installation
- EIA Universal 5/8 - 5/8 - 1/2 in. vertical mounting-hole pattern matches industry standards and connects to most competitive racks
- Integral front waterfall top
- Pre-drilled holes on top to ease runway installation
- Top and bottom cable entry cutouts
- Ground provision with ground symbol
- Full complement of matching components for equipment and cable management
SPECIFICATIONS:
- Rack is 10-gauge steel, fully welded for maximum rigidity
FINISH:
- Pre-treated steel coated with RAL 9005 black textured, low-gloss polyester powder paint.
LOAD RATING:
- Dynamic: 500 lb. (227 kg)
- Static: 2500 lb. (1134 kg)
- For higher loads, contact Hoffman. Static load has a safety factor of 4 applied.
