Product Overview

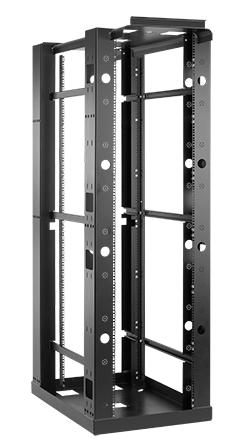

Seismic 4-Post Open-Frame Rack, 19-inch 45U, Black, Steel
- Rack is fully welded for maximum rigidity
- EIA universal 5/8 - 5/8 - 1/2 in. spaced square holes fit 19-inch rack equipment and accessories
- Rear rack angle adjustable 0 to 39.09 inch (0 to 993 mm)
- Nominal height is 7 feet (2.1 m)
- Can be ganged with both 2- and 4- post open frame racks
- Integral front waterfall top
- Pre-drilled holes on top to ease runway installation
- Top and bottom cable entry cutouts
- Ground provision with ground symbol
- Full complement of matching components for equipment and cable management
PRODUCT ATTRIBUTES
- Height: 86.02 in / 2185 mm
- Width: 26.75 in / 679 mm
- Depth: 39.87 in / 1013 mm
- Material: Mild Steel
- Rack Units: 45
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 10 ga / 3.4 mm
- Weight: 376 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Seismic 4-Post Open Frame Racks combine the mounting security of a cabinet with the accessibility of a rack. Used in communication data center and telecommunication room applications that are subject to seismic activity or vibration, these adjustable-depth racks support deeper, heavier network equipment and can be ganged with standard 2-post or other 4-post racks to expand existing systems.
