Description

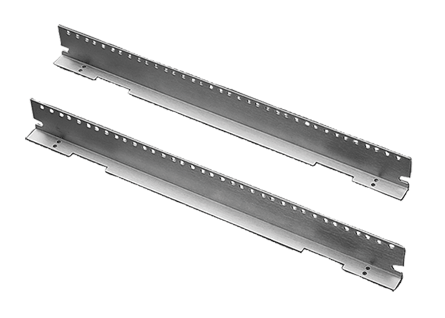

Rack Angle 19-inch and 23-inch SOHO Sq, fits 700x600mm, Black, Steel
- The 19-in. and 23-in. Rack Angles provide 19- or 23-in. rack spacing within a variety of Networking, Seismic, and PC cabinets
- Rack Angles support any standard EIA spaced networking equipment designed to mount within a cabinet
- The rack spacing, whether 19- or 23-in. is dependent on frame width
- They are made of 14 gauge steel with square holes or 12 gauge steel with 10-32 tapped holes
- Each SKU comes with a pair of rack angles
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Powder Coated
- Color: Jet Black
- Rack Spacing: 19 in.
- Hole Type: Square
- Fits Frame Height: 700mm
- Fits Frame Width: 600 mm
- Rack Units: 11
- Use With: Networking Cabinet - SOHO
- Color Code: RAL 9005
- Thickness: 14 ga / 1.9 mm
- Weight: 3.7 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The 19-in. and 23-in. Rack Angles provide 19- or 23-in. rack spacing within a variety of Networking, Seismic, and PC cabinets. Rack Angles support any standard EIA spaced networking equipment designed to mount within a cabinet. The rack spacing, whether 19- or 23-in. is dependent on frame width. They are made of 14ga steel with square holes or 12 gauge steel with 10-32 tapped holes. Each SKU comes with a pair of rack angles.
BULLETIN NUMBER
DNCY
