Product Overview

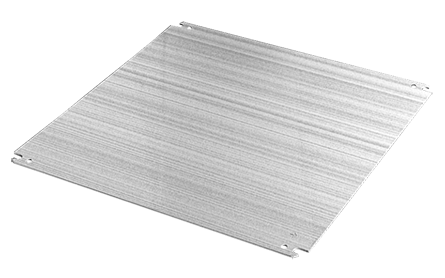

ComLine Mounting Panel, fits 1000x600mm, Mill, Aluminum

The ComLine Mounting Panel provides a mounting surface in the back of the Comline Enclosure for a variety of surface-mount components

PRODUCT ATTRIBUTES

Material: Aluminum
Finish: Mill
Color: Unpainted
Width: 20.71 mm / 526 mm
Height: 36.46 in / 926 mm
Fits: 1000 x 600 mm
Thickness: 0.125 in / 3 mm
Weight: 11 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

The ComLine Mounting Panel provides a mounting surface in the back of the Comline Enclosure for a variety of surface-mount components. This component is a aluminum and comes in a mill finish.

BULLETIN NUMBER

DCOMY

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Product Overview
Other Information

ComLine Mounting Panel, fits 1000x600mm, Mill, Aluminum

The ComLine Mounting Panel provides a mounting surface in the back of the Comline Enclosure for a variety of surface-mount components

PRODUCT ATTRIBUTES

Material: Aluminum
Finish: Mill
Color: Unpainted
Width: 20.71 mm / 526 mm
Height: 36.46 in / 926 mm
Fits: 1000 x 600 mm
Thickness: 0.125 in / 3 mm
Weight: 11 lb

DRAWINGS AND DOCUMENT DOWNLOADS

2D DXF

MOUNTING PANEL 2D DXF CAD

3D Step

EP10060AL 3D STEP CAD

Approval Agency Certificate

DECLARATION OF CONFORMITY: ENCLOSURE PANELS

DECLARATION OF COMPLIANCE

Data Sheet

COMLINE TYPE 4X SPEC SHEET

ADDITIONAL PRODUCT DETAILS

The ComLine Mounting Panel provides a mounting surface in the back of the Comline Enclosure for a variety of surface-mount components. This component is a aluminum and comes in a mill finish.

BULLETIN NUMBER

DCOMY

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
