Product Overview

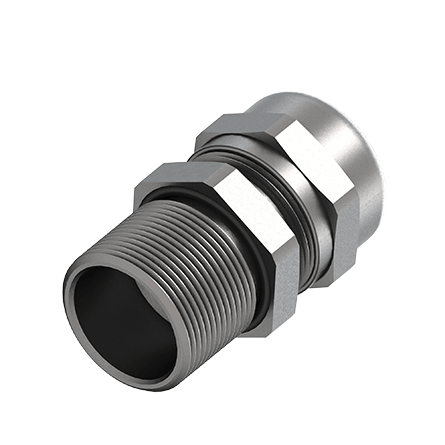

Hazloc Cable Glands for Non-Armored Cable (Ex d/e/tb)
- Suitable for non-armored cables in flameproof (ex d), increased safety (ex e) and dust (ex tb) applications
- Allow for a wider clamping range in a single gland with 3 levels of removable seals
- All metric thread cable glands are packaged as kits; each kit includes a chloroprene washer, a locknut and an earthtag
- All NPT thread cable glands are packaged as kits; each kit includes a locknut and an earthtag (except for NPT 3/8" cable glands which do not include locknuts or earthtags)
- Available in Metric (M) and NPT (N) thread type
- Operating temperature from -40 C to 80 C with chloroprene seal and -60 C to 80C with silicon seal in Ex d/e/tb application
- Operating temperature from -40 C to 80 C with chloroprene seal and -60 C to 140 C with silicon seal in Ex e/tb application
PRODUCT ATTRIBUTES
- Size: NPT 2"
- Clamping Range Diameter: 35.0-45.0 mm / 1.38-1.77 in
- Seal: Silicone
- Color: Unpainted
- Finish: Brushed
- Material: Stainless Steel
- Weight: 1.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Hazloc cable glands provide strain relief, sealing and secure entry of cables into enclosures or electrical equipment in hazardous areas. Suitable for Zone 1, 2, 21 or 22 with ATEX and IEC certifications, these cable glands are reliable to protect critical processes and people where explosive gas and dust may be present. Available in various materials, thread types and sizes, our hazloc cable glands are designed to be used in many applications and under extreme environments.
