Product Overview

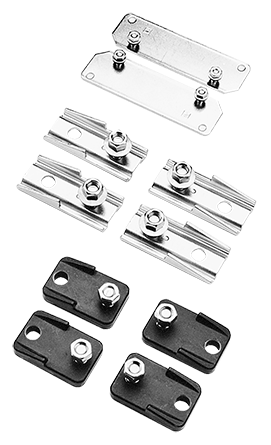

Mounting Bracket Kit for IS/GSC Boxes, fits B=10.00 or 12.00, Plated, Steel
- Plastic mounting foot kits are rated for 500 lb. (227 kg) maximum load
- Sealing washers are provided with each kit to maintain Type 4 and 12 after installation, Stainless steel and plastic mounting bracket kits are rated to Type 4X
- All hardware is included
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Plated
- Color: Unpainted
- Thickness: 14 ga / 1.9 mm
- Fastener Thread Size: #10-32
- Use On: Instrumentation enclosures D12104IS through D12108IS
- Weight: 0.55 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Mounting bracket kits are field-installable. DMFK1 and DMFK2 include two 14-gauge steel external mounting brackets and fasteners. CMFK, CMFKSS, and CMTGFT include four brackets per kit.
BULLETIN NUMBER
A80
