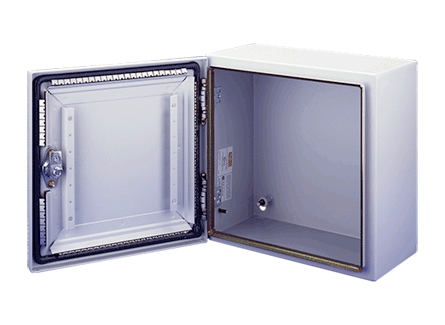

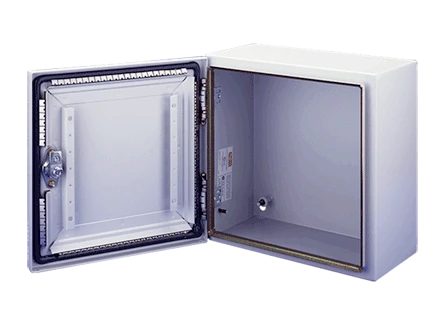

Hoffman CSD362412LGEMC Type 4 Concept EMC Wall-Mount Enclosure

Hoffman CSD362412LGEMC Type 4 Concept EMC Wall-Mount Enclosure

$2,678.00
SKU:
CSD362412LGEMC
Shipping:
Calculated at Checkout
Nema Rating:
Type 4
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Concept EMC Enclosure Type 4, 36.00x24.00x12.00, Light Gray, Mild Steel

  • Seams continuously welded and ground smooth
  • Minimum width body flange provides maximum door opening
  • External formed body flange channels away liquids
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Door opens 210 degrees
  • Corner-formed door
  • Hinge mounting brackets for wire management or optional accessories
  • Stainless steel spring finger EMI/RFI gasket
  • Quarter-turn latches
  • Grounding stud on body
  • Door bars provided for wire management and bonding
  • Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet

PRODUCT ATTRIBUTES

  • Height: 36 in / 914 mm
  • Width: 24 in / 610 mm
  • Color: Light Gray
  • Depth: 12 in / 305 mm
  • Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; IP66
  • Material: Mild Steel
  • Finish: Powder Coated
  • Concept Panel: CP3624
  • Conductive Panel: CP3624G
  • Panel Size: 34.20 x 22.20 in / 869 x 564 mm
  • Mounting: 34.50 x 22.50 in / 876 x 572 mm
  • Latch Quantity: 2
  • Body Thickness: 16 ga / 1.52 mm
  • Color Code: RAL 7035
  • Door Thickness: 14 ga / 1.9 mm
  • Weight: 68 lb

ADDITIONAL PRODUCT DETAILS

Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Purchase panels separately.

BULLETIN NUMBER

A53

INDUSTRY STANDARDS

UL 508A Listed; Type 4, 12; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
Mounting brackets required to meet UL/CSA external mounting requirement.
NEMA/EEMAC Type 4, 12, 13
CSA, File No. 42186: Type 4, 12
VDE IP66
IEC 60529, IP66
