Description

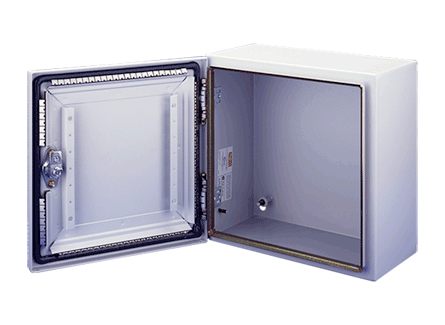

Concept EMC Enclosure Type 4, 16.00x12.00x6.00, Light Gray, Mild Steel
- Seams continuously welded and ground smooth
- Minimum width body flange provides maximum door opening
- External formed body flange channels away liquids
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Door opens 210 degrees
- Corner-formed door
- Hinge mounting brackets for wire management or optional accessories
- Stainless steel spring finger EMI/RFI gasket
- Quarter-turn latches
- Grounding stud on body
- Door bars provided for wire management and bonding
- Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
PRODUCT ATTRIBUTES
- Height: 16 in / 406 mm
- Width: 12 in / 305 mm
- Color: Light Gray
- Depth: 6 in / 152 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; IP66
- Material: Mild Steel
- Finish: Powder Coated
- Concept Panel: CP1612
- Conductive Panel: CP1612G
- Panel Size: 14.20 x 10.20 in / 361 x 259 mm
- Mounting: 14.50 x 10.50 in / 368 x 267 mm
- Latch Quantity: 1
- Body Thickness: 18 ga / 1.21 mm
- Color Code: RAL 7035
- Door Thickness: 16 ga / 1.52 mm
- Weight: 17.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately.
BULLETIN NUMBER
A53
